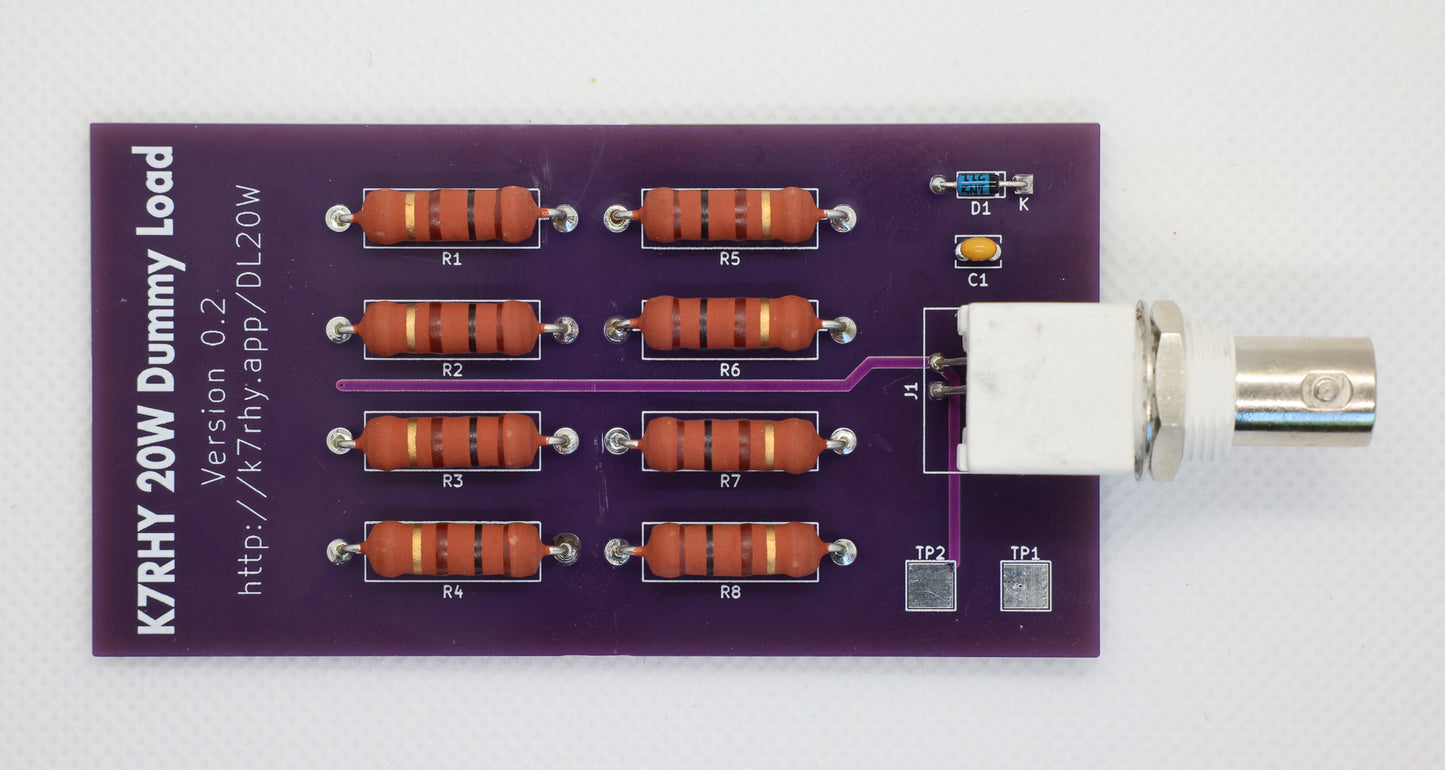

20W Dummy Load Kit

20W Dummy Load Kit

Regular price $15.95 USD
Regular price Sale price $15.95 USD
Sale Sold out
Tax included.

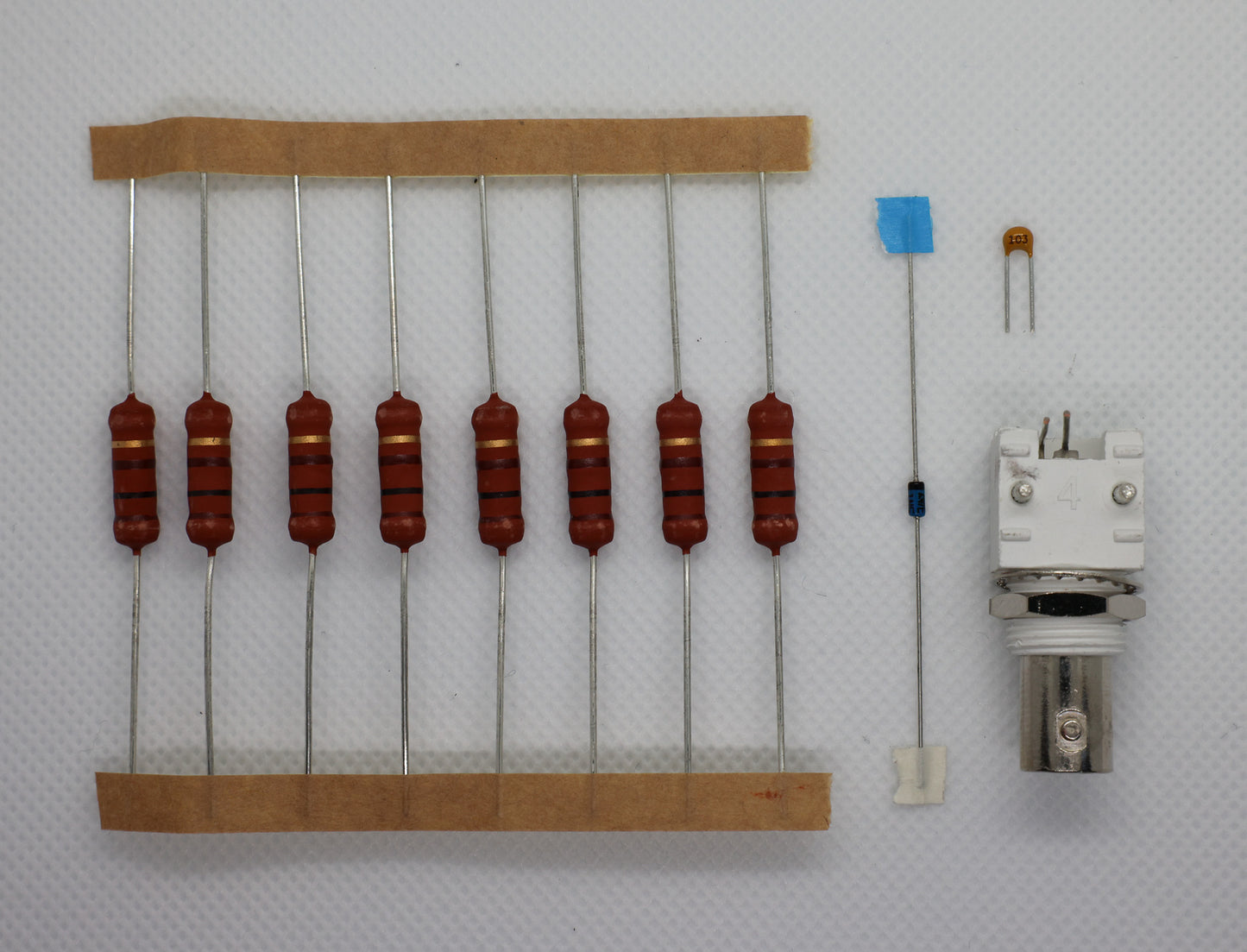

Unleash the full potential of your ham radio setup with our 20W Dummy Load Kit, designed for both novice and experienced operators. Whether you’re testing, adjusting, or simply experimenting with your equipment, this kit provides the perfect solution for ensuring your transmitter is optimally tuned without transmitting signals on the air. The kit is shipped unassembled and without an enclosure.

Key Features:

  • High-Quality Components: Each kit includes precision resistors and robust, heat-resistant materials designed to withstand continuous usage at 20 watts.
  • Easy Assembly: With clear, step-by-step instructions, you can assemble your dummy load in no time. No advanced tools required—just a soldering iron and some basic electronics skills.
  • Integrated Power Measurement: Equipped with on-board measurement components, this kit allows for accurate measurement of power output via test leads, ensuring your equipment operates at its best.
  • Versatile Use: Perfect for testing the output power of your transmitters, tuning antennas, or adjusting signal amplifiers without interference.
  • Educational Experience: Not only is this a practical tool for your radio activities, but it’s also a great project for learning more about the fundamentals of radio electronics and antenna theory.

Product Specifications:

  • Power Handling: 20 watts continuous, 100 watts peak
  • Impedance: 50 ohms
  • SWR: 1.1 HF bands, 1.3-2.5 for VHF bands
  • Connector Type: BNC female
  • Frequency Range: 0-455 MHz

Ideal for ham radio clubs, electronics hobbyists, and educational environments where learning and precision are key. Get your hands on this essential piece of equipment and ensure your ham radio transmissions are perfectly tuned every time!
